Bilayer Tablets: A Complete Guide to Manufacturing, Layer Bonding, and Common Defects

A bilayer tablet combines two separately prepared formulations in one dosage unit. The two layers can contain different active ingredients, follow different release profiles, or keep ingredients apart when direct contact would create stability or processing problems. The finished tablet must still behave as one product during compression, ejection, coating, packaging, transport, and storage.

That requirement makes bilayer tablet manufacturing more demanding than ordinary single-layer compression. Each formulation has its own flowability, density, moisture level, lubrication response, and deformation behavior. The first layer must be compact enough to remain stable before the second filling stage, but not so dense that the second layer cannot form a strong interface. Layer-weight errors, powder carryover, capping, and delamination often begin at this point.

Research on bilayer tablets shows that material properties, first-layer compression, final compression, and interface roughness all influence mechanical strength. The correct settings therefore come from product-specific development and scale-up work rather than a universal pressure formula. (PubMed)

1. What Is a Bilayer Tablet and Why Is It Used?

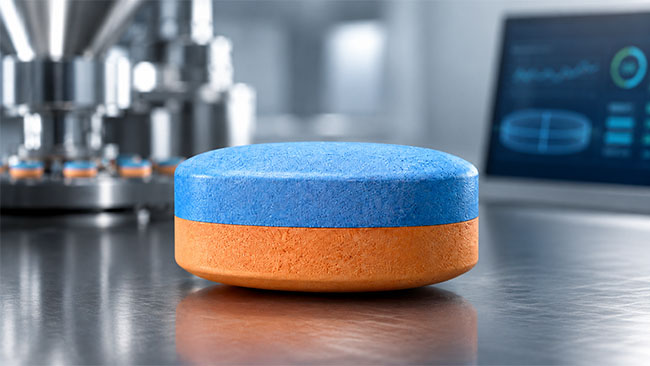

A bilayer tablet contains exactly two layers formed from separate blends. The first blend enters the die and receives controlled compaction. The second blend is then added, and final compression joins both layers into one tablet.

A multilayer tablet is the broader category for tablets containing two or more layers. A trilayer tablet contains three. The colors of the layers are optional: color can make the interface easier to inspect, but the structure is defined by separate formulations and sequential filling.

Bilayer tablets are selected when a single homogeneous blend cannot deliver the required product design.

One common use is combining immediate and extended release. The first layer supplies an initial dose, while the second uses release-controlling excipients to maintain delivery over a longer period. The release behavior comes from the formulation of each layer, not from the color difference.

Another use is combining two active ingredients in one dosage unit. Separate layers allow each ingredient to use suitable binders, disintegrants, lubricants, or granulation methods. The design can also reduce direct contact between materials that should not remain fully mixed during storage, although stability studies are still required because the layer boundary is not a perfect barrier.

Layer weights do not need to be equal. A 50:50 design is easier to visualize, but commercial products can use a thick primary layer and a thin secondary layer. Thin layers are harder to control because a small absolute error represents a larger percentage of the target weight.

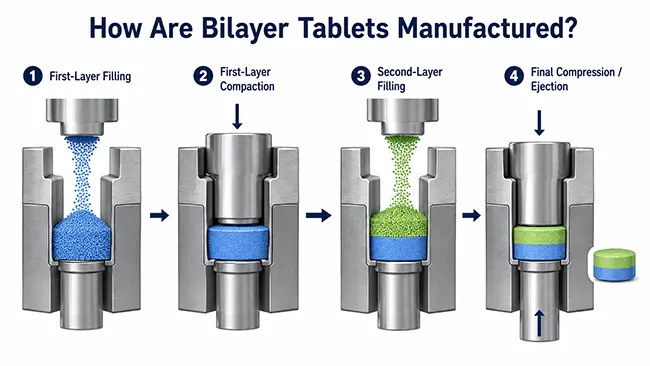

2. How Are Bilayer Tablets Manufactured?

Bilayer tablet manufacturing begins with two independently prepared formulations. Each blend can follow direct compression, wet granulation, or dry granulation according to its own properties. Drying, milling, screening, and lubrication are also completed separately.

Before compression, development teams compare particle-size distribution, bulk density, flowability, moisture, compressibility, elastic recovery, and lubricant concentration. A blend that produces a strong single-layer tablet does not automatically create a strong interface when paired with another material.

First-Layer Filling

The first feeder delivers the initial formulation into the die. Lower-punch position determines the available volume, while powder level, feeder speed, and bulk density affect the actual weight.

First-layer control is important because total tablet weight can hide an error. The first layer can be light while the second is heavy, leaving the final tablet close to its target even though the individual doses are incorrect.

First-Layer Compaction

The first layer receives controlled compaction before the die reaches the second feeder. This step stabilizes the surface and reduces disturbance during the next filling stage.

Too little compaction can allow powder mixing, surface movement, and a blurred boundary. Too much compaction can create a dense, smooth surface with less opportunity for particles from the second layer to interlock.

Research has shown that higher first-layer compression can reduce interface strength in some formulations. The setting must therefore be established through testing rather than copied from another product.

Second-Layer Filling and Final Compression

The lower punch creates room above the first layer, and the second feeder adds the next formulation. Scraper condition, die-table cleanliness, feeder sealing, and dust extraction all affect whether the second layer remains clean and accurately filled.

Final compression completes three jobs: it compacts the second layer, further consolidates the first, and forms the interface between them. Main force, dwell time, turret speed, punch shape, and material deformation all influence the result.

After compression, the lower punch raises the tablet for ejection. The tablets normally pass through a tablet deduster and, where required, a pharmaceutical metal detector. In-process checks cover appearance, layer boundary, weight, thickness, hardness, and friability before the tablets move to coating or packaging.

3. How Does a Bilayer Tablet Press Control the Process?

A bilayer tablet press must coordinate two material feeds with separate filling stages and two compression events. The basic machine sequence includes first-layer feeding, controlled first-layer compaction, second-layer feeding, final compression, ejection, and discharge.

Feeding and Fill-Depth Control

Each layer needs its own fill setting because the two blends can have different densities. Stable feeder operation is equally important. A force feeder can improve die filling when gravity flow is insufficient, but excessive feeder speed can change apparent density or increase segregation.

The most useful setting is not the fastest one. Production trials should confirm that both layer weights remain stable across the intended speed range.

Compression and Dust Control

First-layer and final compression must be independently repeatable. Turret speed affects die-filling time, air release, and dwell time, while worn tooling or unstable punch movement can create station-specific variation.

Dust removal is especially important between the two feeding zones. Loose powder carried into the second layer can change weight, blur the visual boundary, and create cross-contamination.

Rich Packing’s dual-layer tablet press machine is best for manufacturing bilayer tablets. This series includes digital filling-depth and pressure adjustment, optional forced feeding, upper and lower dust extraction, Siemens PLC control, an enclosed compression chamber, GCr15 tooling, and compression force up to 120 kN.

Those features support repeatable filling, pressure adjustment, cleaning, and powder control. Final equipment selection still depends on both formulations, the layer-weight ratio, tablet dimensions, output target, monitoring requirements, and the intended cleaning procedure.

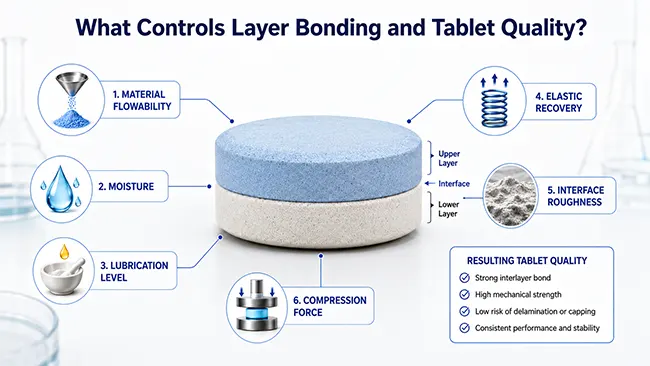

4. What Controls Layer Bonding and Tablet Quality?

A strong bilayer tablet requires both acceptable overall strength and a stable interface. Total hardness alone does not prove that the layers are securely bonded.

Material behavior is the first factor. Flowability affects die filling, density determines how much weight occupies the available volume, and particle size influences packing and segregation. Moisture changes deformation and sticking behavior. Lubricants reduce friction, but excessive lubrication can coat particle surfaces and weaken bonding.

Elastic recovery is another major concern. Both layers expand after pressure is released. When one recovers more than the other, stress develops across the interface. The tablet can then split during ejection, coating, transport, or storage. Material properties and compression settings therefore need to be evaluated together rather than as separate variables.

Interface roughness also matters. A moderately rough first-layer surface gives the second formulation more opportunity for mechanical interlocking. Excessive first-layer pressure can reduce that roughness. Research has linked greater interfacial roughness with stronger bilayer tablets, although the final result still depends on the compaction properties of both materials.

Layer sequence can change the outcome as well. Placing a more plastic material below a more brittle material can behave differently from reversing the order. Development trials should therefore evaluate the planned sequence rather than testing the two formulations only as individual tablets.

Finally, speed and dwell time affect filling, deaeration, and consolidation. A useful trial compares both layer weights, total weight, hardness, friability, boundary appearance, and reject rate at low, normal, and upper operating speeds.

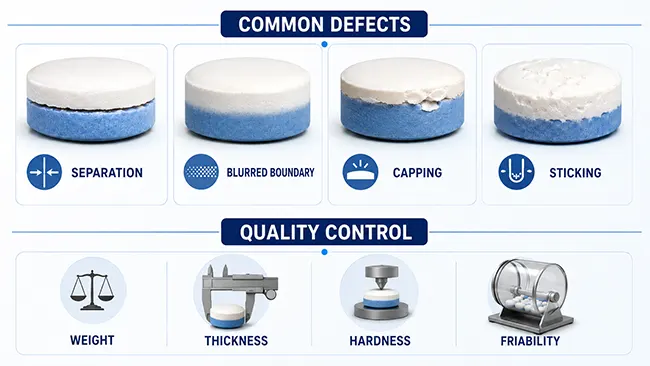

5. Common Defects, Quality Control, and Scale-Up

The time and location of a defect help narrow the cause. Problems present from startup usually point to formulation, setup, tooling, or incorrect settings. Defects that appear after extended running suggest segregation, feeder compaction, material buildup, or changing moisture conditions.

A defect tied to one punch station usually indicates local tooling, punch movement, or die-fill variation. A problem across every station points more strongly to a shared material or process condition.

Layer separation deserves special attention because simply increasing final compression does not always solve it. The first-layer surface, lubricant level, elastic recovery, trapped air, and formulation compatibility must be considered together. The interface can fail immediately after ejection or later during coating and packaging.

Quality Control, Scale-Up, and Packaging

In-process control should track the first layer, second layer, and final tablet separately. Useful records include individual layer weights, total weight, compression force, thickness, appearance, reject rate, speed, and powder loss.

Finished-product testing follows the approved specification and can include appearance, weight variation, hardness, friability, assay, content uniformity, dissolution, stability, and layer integrity. Products containing two active ingredients need suitable methods and acceptance criteria for each ingredient.

ICH Q8 connects critical material attributes and process parameters with product quality and supports the development of a justified operating range. ICH Q6A places finished-product specifications within a broader control strategy that also includes development, validation, in-process control, stability work, and GMP.

Scale-up requires more than increasing turret speed. Production equipment changes feeder shear, die-filling time, dwell time, vacuum conditions, powder recirculation, and batch duration. Trials should cover startup, normal running, speed changes, stops, restarts, and extended operation.

Using the real formulations gives more useful evidence than testing only with standard powder. The trial should reproduce the intended layer ratio, tablet diameter, thickness, output, and downstream handling.

Packaging must protect both the formulation and the interface. Moisture-sensitive products can require high-barrier blister materials, while mechanically fragile tablets need a feeding and packaging route that avoids excessive impact. Bottle packaging can include desiccant insertion and induction sealing when justified by stability data.

Conclusion

A bilayer tablet joins two formulations, but successful production depends on controlling them separately before they become one dosage unit. Stable feeding, correct first-layer compaction, clean second-layer filling, suitable final compression, and layer-specific testing are the main foundations.

A bilayer tablet press provides the required sequence and control points, but machine force cannot correct poor flow, incompatible deformation, excessive lubrication, or an unsuitable layer ratio. Reliable manufacturing comes from matching formulation properties, tooling, feeding, compression, dust control, speed, quality testing, and packaging within a validated operating range.

Frequently Asked Questions

What is the difference between a bilayer tablet and a normal tablet?

A normal tablet is usually made from one main blend in one filling sequence. A bilayer tablet uses two separate formulations, two filling stages, and sequential compression.

Why do bilayer tablets separate?

Common causes include excessive first-layer compression, weak interface formation, different elastic recovery, excess lubricant, moisture variation, and trapped air.

Can a standard rotary tablet press machine make bilayer tablets?

A press designed for one feed and one compression sequence does not provide full bilayer control. The equipment needs a suitable arrangement for two feeds, first-layer compaction, second-layer filling, and final compression.

How is each layer’s weight controlled?

Each layer uses its own fill depth, feeder setting, powder level, and process checks. First-layer sampling or automatic feedback is added when required by the product and supported by the machine.

Does higher compression always improve layer bonding?

No. Excessive first-layer pressure can smooth and densify the surface, reducing interfacial bonding. Final pressure must also stay within a range that supports strength without creating excessive stress or changing product performance.

References

● Abebe, A. et al. Review of Bilayer Tablet Technology. (PubMed)

● ICH. Q8(R2) Pharmaceutical Development and Q6A Specifications. (ICH)
