How to Choose Desiccant Inserter for Tablet Counting?

1. Introduction

In pharmaceutical packaging production, every tiny process detail determines the final product quality and market compliance level. While most manufacturers focus on upgrading core equipment such as tablet counting machines, bottle unscramblers and capping machines, they often overlook the critical supporting link: desiccant insertion. As a key barrier against moisture, oxidation and microbial contamination, desiccants effectively stabilize the efficacy of tablets and capsules, extending product shelf life and reducing scrap rates.

However, mismatched desiccant inserting machine has become a common bottleneck restricting pharmaceutical production efficiency. Many pharmaceutical and health product enterprises face recurring problems in actual production: low line running speed, high desiccant breakage rate and debris contamination risks. These issues not only increase production and maintenance costs but also cause hidden dangers for GMP compliance and product quality stability.

Currently, the pharmaceutical counting line market is dominated by three mainstream desiccant insertion solutions: roll stock cutting type, pre-cut single pouch type, and cylindrical type. Each type has unique working principles, performance characteristics and applicable production scenarios. Let's take a look at which type of deoxidizer inserting machine is the best for you.

2. Working Principles and Core Characteristics

To select the most suitable equipment for personalized production needs, it is necessary to first clarify the structural logic and core positioning of the three types of desiccant inserting machines. Different design concepts fundamentally determine their differences in efficiency, cost, stability and applicability.

2.1 Roll Stock Cutting Desiccant Inserter

The roll stock cutting desiccant pouch inserter is designed for continuous and large-scale automated production, adopting integrated coiled desiccant without pre-cutting or manual sorting. The machine drives the continuous desiccant roll through a high-precision stepping motor, realizing stable and uniform feeding. Equipped with a real-time detection of the highest and lowest points of the desiccant, it achieves accurate fixed-length positioning, and the customized high-hardness cutter completes instantaneous cutting and separation. The whole process of feeding, cutting and inserting is highly coordinated, perfectly matching the high-speed operation rhythm of pharmaceutical counting lines.

Its core feature is one-stop integrated automatic processing. It eliminates the intermediate link of manual or mechanical sorting of finished desiccants, reduces equipment stations and failure points, and realizes seamless connection from desiccant to bottle. The cutting length can be freely adjusted according to production needs, adapting to multiple desiccant dosage specifications, with strong production flexibility for standardized products.

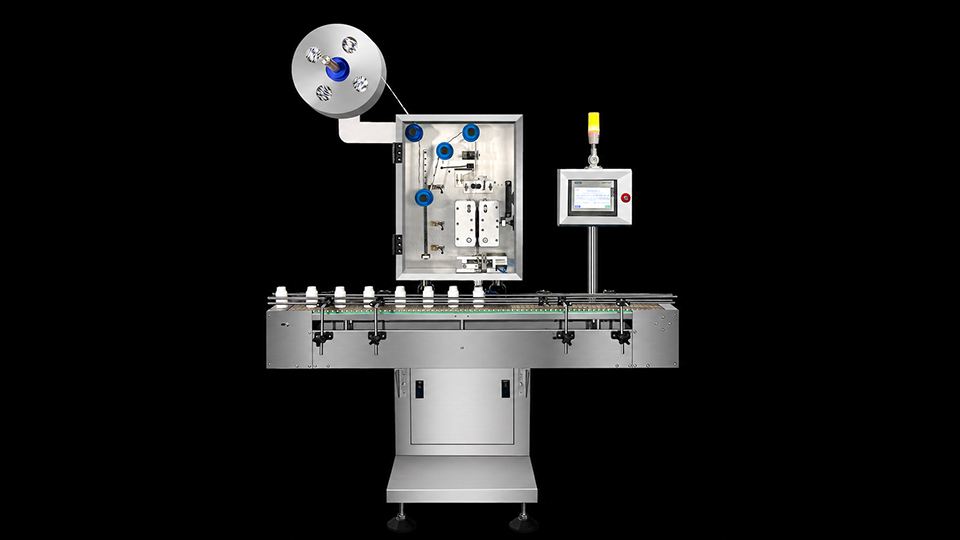

roll stock cutting desiccant bag inserting machine

2.2 Pre-Cut Single Pouch Desiccant Inserter

Different from the on-site cutting mode, this desiccant pouch inserter is developed for finished independent single-pack desiccants. The machine adopts mechanical sorting structure, which can orderly arrange scattered single desiccant pouches. Through the high-sensitivity photoelectric sensing positioning system, it accurately identifies qualified products, removes stacked or misplaced materials, and completes fixed-point and quantitative insertion into pharmaceutical bottles.

This type of equipment is positioned as simple, stable and zero-pollution insertion. It cancels the on-site cutting process of desiccants, fundamentally avoiding quality risks such as desiccant bag breakage, powder debris and residual edges. The mechanical structure is concise, the operation logic is intuitive, and the threshold of daily operation and maintenance is low, which is very suitable for flexible production with frequent product switching.

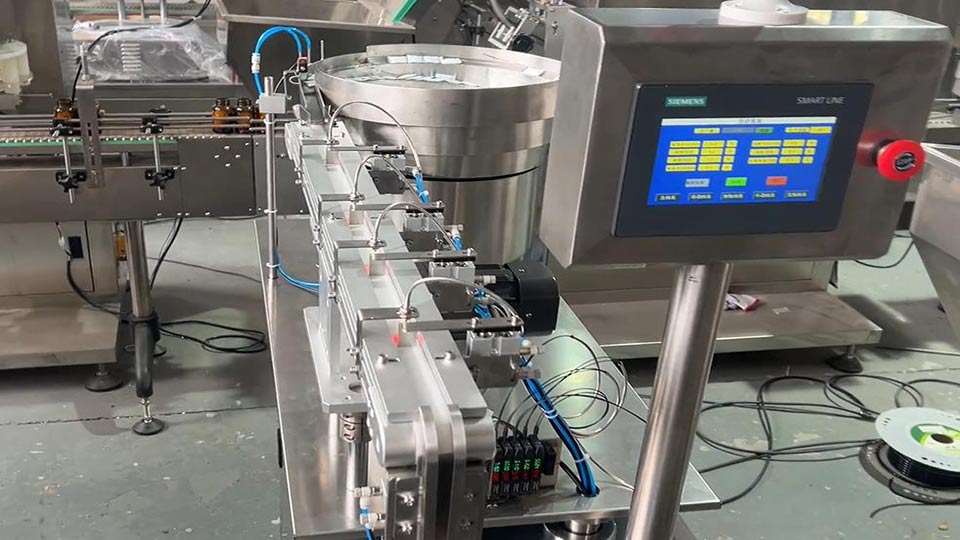

pre-cut single pouch desiccant bag inserting machine

2.3 Cylindrical Desiccant Inserter

The cylindrical desiccant inserting machine is a specialized customized device for strip-shaped cylindrical desiccants. Aiming at the pain points of easy deviation, low efficiency and poor fitting degree in manual and ordinary equipment insertion, it is equipped with a precision straightening and positioning mechanism. After straightening and calibrating the cylindrical desiccant, it quantitatively intercepts materials and completes vertical and stable insertion, which perfectly fits the structural characteristics of narrow-neck and small-dosage special bottles.

Its biggest advantage is professional matching and high-precision adaptation. For special bottle types that cannot be applied by conventional flat desiccants, cylindrical desiccants can make full use of the internal space of the bottle with higher fitting degree and better moisture-proof effect. The whole insertion process is stable and low-dust, meeting the ultra-high sanitation standards of high-end pharmaceutical and health product packaging.

cylindrical desiccant inserter

3. Performance Comparison

Combined with the actual production demands of pharmaceutical enterprises, we compare the three types of equipment from six core dimensions: production efficiency, material loss, GMP compliance, bottle type adaptability, operation and maintenance, and comprehensive production cost, to help manufacturers achieve precise scenario-based selection.

3.1 Roll Cut Desiccant Inserter: First Choice for Large-Scale and Low-Cost Standard Production

The roll-cut desiccant pouch inserter boasts outstanding overall cost-effectiveness and continuous running capability. Coiled desiccant raw materials cost far less per unit than pre-made single pouches, cutting long-term packaging expenses for mass production. With a fully enclosed feeding system preventing dust and foreign impurities and eliminating secondary desiccant handling, it satisfies strict hygiene and GMP compliance standards. Adjustable cutting lengths also allow quick switches between different desiccant dosages for versatile production.

Its main drawback lies in strict demands on cutter accuracy and sensor calibration; routine maintenance and parameter tuning are necessary to prevent incomplete cuts and pouch rupture. Accordingly, it is ideal for high-volume, cost-conscious pharmaceutical manufacturers with standardized production lines for tablets and capsules.

3.2 Single-Pouch Desiccant Inserter: Optimal Solution for High-Cleanliness Flexible Production

The single-pouch desiccant pouch inserter features exceptional stability with zero contamination risks. Since no on-site cutting is involved, no broken pouches occur throughout operation, complying with stringent GMP ultra-clean requirements for premium pharmaceuticals and health supplements. It has a simple mechanical layout with few wearing parts, delivering low failure rates and reliable long-run performance.

Its detachable construction eases routine cleaning and part replacement, shortening changeover time perfectly for mixed-variety, small-batch flexible production. Operators can quickly learn its operation to cut human errors.

However, it comes with higher overall material costs, as pre-made individual desiccant sachets cost more than rolled stock. Its sorting mechanism may suffer pouch stacking and jamming at extreme high speeds, capping maximum throughput. Thus it suits manufacturers prioritizing hygiene over cost with frequent product changeovers and medium or small batch output.

3.3 Cylindrical Desiccant Inserter: Specialized Equipment for Special Bottle Packaging

The cylindrical desiccant inserting machine holds unique strengths for narrow-neck specialty bottles. Ordinary flat desiccant sachets often get stuck or tilted during insertion, hurting sealing and moisture resistance, while cylindrical desiccants can be inserted vertically and steadily with better space utilization and consistent moisture absorption.

Running quietly with minimal wear, its straightening and positioning structure ensures precise insertion for a higher yield than general-purpose models. Dust generation is nearly eliminated, meeting strict production standards for custom pharmaceuticals and premium health supplements.

Its major downside is limited versatility: it only works with cylindrical desiccants, incompatible with regular pouch desiccants. It serves packaging lines for special-formula medicines, high-end heath supplement and small-dose narrow-neck bottled goods.

General comparison among three desiccant inserters

4. Rich Packing Full-Series Desiccant Inserters

Rich Packing, rooted in the research and development and manufacturing of pharmaceutical counting line supporting equipment, has achieved full coverage of three mainstream desiccant insertion technologies, and can provide targeted high-matching equipment solutions according to the personalized production conditions of different enterprises.

4.1 Rich Packing Roll-Cut Desiccant Inserter

Rich Packing’s roll-cut desiccant sachet filling machine adopts imported servo drive system and multiple detection points, with cutting accuracy controlled within ±1mm, completely eliminating incomplete cutting and desiccant breakage. The cutting blade is made from high-carbon alloy steel, avoiding secondary contamination of the desiccant and meeting GMP requirements. Its pre-feeding design supports even desiccant bag transmission, preventing desiccant clogging for smoother, faster output.

The equipment can be seamlessly connected with capsule counting machines, capping machines and labeling machines to form an integrated automatic packaging production line, greatly improving the overall production efficiency of the factory. It is the preferred cost-effective equipment for large-scale standardized pharmaceutical production lines.

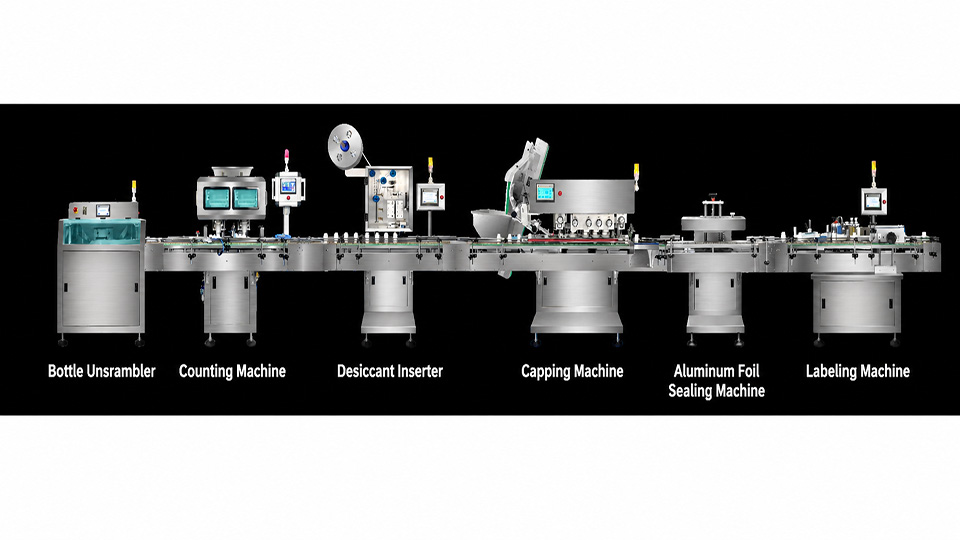

counting production line

4.2 Rich Packing Single-Pouch Desiccant Inserter

Aiming at the common jamming and stacking problems of single-pouch equipment on the market, Rich Packing optimizes the vacuum adsorption and dynamic sorting structure, matching intelligent anti-blocking detection system, which can automatically identify and discharge abnormal materials, ensuring continuous and stable high-speed operation. Equipped with an intelligent counting and anti-missing insertion system, the desiccant insertion accuracy rate is as high as 99.9%, effectively avoiding defective products caused by missing insertion or multiple insertion.

The whole machine adopts modular assembly design, which is convenient for quick disassembly, thorough cleaning and rapid specification switching, meeting the frequent production switching needs of multi-variety and small-batch enterprises. The simple PLC intelligent control panel supports parameter memory and one-key start-up, reducing the technical threshold of operator operation and effectively improving production flexibility.

4.3 Rich Packing Cylindrical Desiccant Inserter (Special Customized Model)

For the special packaging needs of narrow-mouth bottles, Rich Packing’s customized cylindrical desiccant inserter is equipped with a high-precision straightening and positioning mechanism to solve the industry pain points of skewed insertion and unstable placement. The self-adaptive bottle mouth fixture can flexibly adapt to multiple specifications of narrow-diameter bottles, with strong compatibility in special scenarios.

The equipment runs stably for a long time with low noise and low wear, and the vertical insertion process does not damage the bottle mouth or squeeze the desiccant, ensuring the integrity and beauty of product packaging. It fills the market gap of high-precision insertion equipment for special pharmaceutical bottles, and provides professional and reliable supporting equipment for high-end customized pharmaceutical and health product production lines.

4.4 Universal Core Advantages of Rich Packing Full Series

Beyond unique technical merits for each model, all Rich Packing desiccant inserters share competitive universal strengths. Equipped with a unified PLC control system, they allow one-touch parameter setting and production data logging for easy production administration and quality traceability. Constructed in line with pharmaceutical GMP guidelines, the machines feature smooth, easy-clean surfaces free of hygiene dead spaces to satisfy international pharmaceutical certification criteria.

Rich Packing offers complete non-standard customization: we tailor equipment designs based on customers’ bottle dimensions, desiccant sizes, line speeds and site layouts for seamless line integration and maximum throughput. Highly expandable, these inserters can connect with bottle unscramblers, tablet counting machines and labeling machines to form fully automatic intelligent packaging workshops.

5. Industry Selection Suggestions

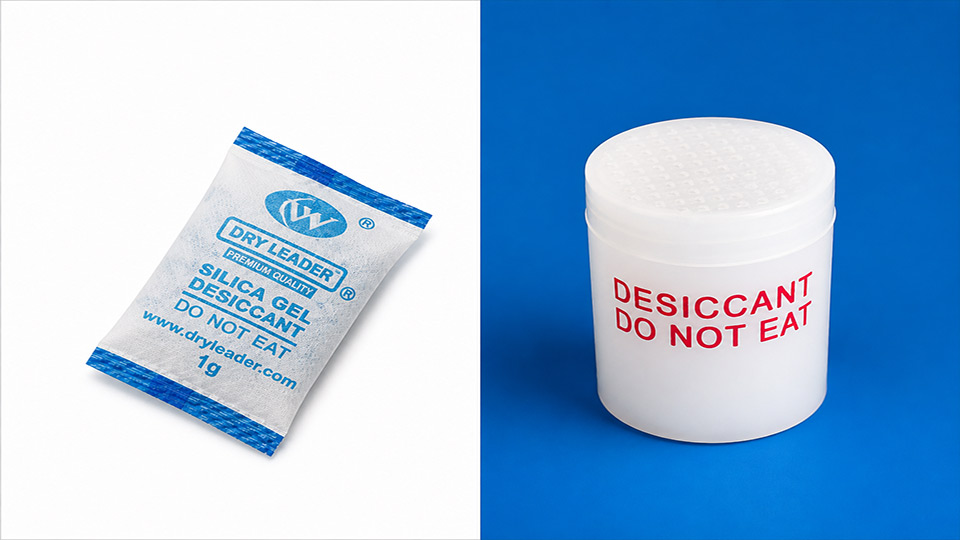

sachet desiccant and cylindrical desiccant

Your ideal desiccant inserter should be selected based on production volume, budget, bottle style and hygiene requirements, as improper model matching is a major cause of poor line performance and packaging defects.

♦ Pick Rich Packing roll-cut desiccant sachet filling machine for high-volume, cost-focused mass production of tablets and capsules, cutting long-term raw material expenses with stable continuous operation.

♦ Choose Rich Packing single-pouch desiccant bag inserting machine for frequent product changeovers and small-batch flexible production; its debris-free operation satisfies stringent GMP hygiene demands.

♦ Adopt Rich Packing cylindrical desiccant inserter exclusively for cylindrical desiccant packaging, eliminating offset insertion and jamming issues for premium specialty products.

Proper model selection helps you boost line efficiency, cut breakdown frequency and lift overall packaging profitability.

6. Conclusion

There is no best desiccant inserter, only the most suitable one. For pharmaceutical enterprises, reasonable equipment selection must be based on their own production scale, product specifications, cost budget and sanitation standards. As a professional global supplier of pharmaceutical packaging line solutions, Rich Packing has always focused on solving practical production pain points for enterprises, relying on mature technical accumulation and rich industry landing experience to create efficient, stable and compliant supporting equipment. A high-quality desiccant insertion link can not only reduce production costs and failure rates, but also effectively improve product market competitiveness.

If you are facing problems such as mismatched desiccant insertion equipment, low production efficiency, excessive material loss and unstable product qualification rate, please contact Rich Packing’s professional technical team at any time. We will provide you with one-to-one exclusive equipment selection scheme and production line optimization solutions to help your pharmaceutical packaging production upgrade efficiently.
